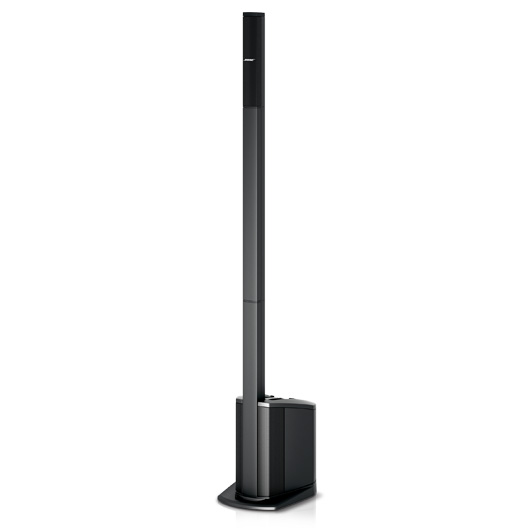

L1

Rango de Frecuencia (-10 dB) 32 Hz - 14 Hz

- Dispersion Nominal 195° H x 10° V

- SPL maximo a 1 m 112 dB SPL (118 dB SPL pico)

- Crossover Frequency 200 Hz (24 dB / octave)

- Potencia Nominal 375 W

Amplificador de bajos 250W

Amlificador de agudos 125W

- Distortion at rated power 0.1% Max (30Hz - 15 kHz)

- Limitador del sistema, Limitador dinamico

- Proteccion de sobrecarga : Fuse/MOV/NTC/PTC

- Drivers:

Top array loudspeaker= 12: 2.25" (57mm) HF drivers

B1 Mod. de bajos= 2: 5.25" (133mm) LF drivers (8Ω)

B2 Mod. de bajos= 2: 10" (254mm) LF drivers (4Ω)

- Entrada: 1/4" - TS unbalanced or TRS balanced

- Salidas :

NL4 connector (all pins wired, two for audio, two

for auto sensing).

Bass output signal for driving up to two B1 bass

modules (one B1 bass module = 8 Ω) (two B1

bass modules = 4 Ω) or one B2 bass module (4 Ω)

- Maximo 300 personas .

- Para uso en interior
